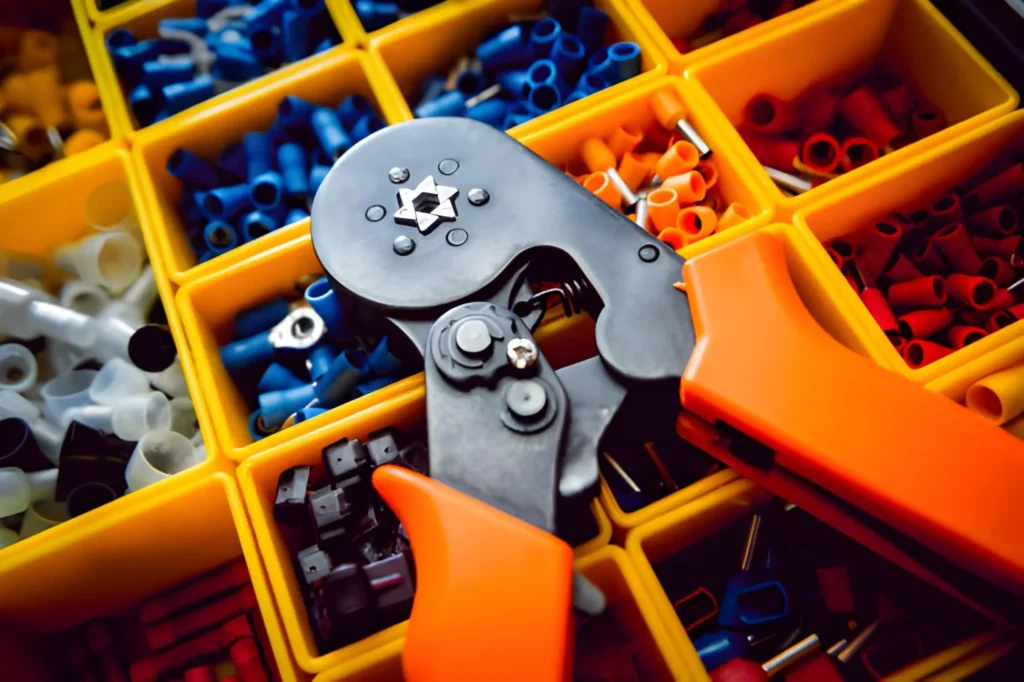

Ratcheting Crimping Tool for 10-22 AWG Insulated Terminals
Table of Contents
Key Features of Ratcheting Crimping Tool at a Glance
Discover the essential features that make the JiaPaiMi ratcheting crimping tool a staple for professionals and DIYers alike. Designed for precision and durability, this electrical crimping tool excels in consistent, secure connections every time.
| Feature | Description | Benefit |
|---|---|---|
| Precision Ratcheting Mechanism | Ensures full-cycle crimping with reliable locking and release | Guarantees consistent crimps and pull-out strength |
| Wide Crimping Range | Supports a broad AWG wire range (10-22 AWG / 0.5-6 mm²) | Versatile for insulated/non-insulated terminals and wire ferrules |
| Color-Coded / Marked Dies | Multiple interchangeable dies clearly marked by wire gauge and terminal type | Easy identification and quick die changes |
| Adjustable Crimp Force | Customizable compression strength to suit different terminal materials | Prevents wire damage and enhances connection reliability |
| Ergonomic Design | Comfortable grips reduce hand fatigue during repetitive use | Ideal for heavy-duty wire crimping and long work sessions |
With these targeted features, the JiaPaiMi tool stands out as a trusted wire terminal crimper offering precision, strength, and usability for automotive, marine, industrial, and home electrical projects.
Product Description: Engineering Precision Connections
The JiaPaiMi ratcheting crimping tool is built for those who demand precise, reliable wire terminal crimps every time. Designed with a robust ratcheting mechanism, it ensures consistent pressure, eliminating the guesswork common with manual crimping pliers. This engineering precision means each crimp offers superior pull-out strength and uniform compression, ideal for both insulated and non-insulated terminals.
The JiaPaiMi Advantage
What sets the JiaPaiMi crimper apart is its full-cycle ratchet system, which guarantees the crimp completes fully before release. This feature not only prevents under-crimping but also reduces hand fatigue during repetitive tasks. Its interchangeable die system supports a wide AWG wire crimper range, from delicate small gauge wires to heavy-duty cable crimps. That makes it incredibly versatile for a variety of electrical connector pliers applications.
Mechanism Deep Dive
Inside the tool, a self-adjusting ratcheting mechanism controls the crimp force applied, ensuring precision with every squeeze. The quick release feature lets you open the jaws easily if a premature release is needed or for tool reset, speeding up workflow without sacrificing quality.
Die Profile & Compatibility
JiaPaiMi’s design includes color-coded, marked dies, compatible with a broad selection of crimp profiles such as insulated terminal tools, butt connector crimpers, open barrel crimpers, and wire ferrule crimping tools. These dies accommodate common wire gauges measured in AWG and mm², making this crimper a go-to choice for electricians and DIYers alike. For example, you might also want to consider the precision ratchet wire crimper tailored for non-insulated terminals for specific applications like automotive or home wiring needs.
Explore precise crimping solutions like the HDT-48-00 Aviation Crimping Tool for non-insulated terminals or the HS-40 Ratchet Crimping Tool for insulated butt connectors to see complementary options that match various terminal types and wire ranges.
Technical Specifications
| Feature | Specification |
|---|---|
| Tool Type | Ratcheting crimping tool |
| Crimp Range (AWG) | 20–10 AWG (0.5–6 mm²) |
| Terminal Compatibility | Insulated & non-insulated terminals |
| Die Type | Interchangeable, color-coded dies |
| Crimp Mechanism | Full-cycle ratchet with quick release |
| Adjustable Crimp Force | Yes, for precise compression |
| Handle Design | Ergonomic, non-slip grip |
| Weight | Approximately 350 grams |
| Material | Hardened steel with corrosion-resistant finish |
| Suitable Applications | Electrical wiring, wire ferrules, butt connectors, open/closed barrel terminals |
This ratcheting crimping tool ensures consistent crimps with reliable pull-out strength, making it an essential wire terminal crimper for automotive, marine, and industrial uses. Its compatibility with a wide AWG wire range and interchangeable die system guarantees flexibility, whether you’re using insulated terminal tools or heavy-duty wire crimpers.
For more detailed info on wire terminal specifications and compatibility, check out our wire terminal AWG guide.
How to Use & Adjust the JiaPaiMi Crimper
Using the JiaPaiMi ratcheting crimping tool correctly ensures precise, secure electrical connections every time. Here’s a simple step-by-step crimp guide to get started, plus tips on adjusting the compression force for different wire gauges and terminal types.
Step-by-Step Crimp Guide
- Select the right die: Choose the correct die size for your insulated or non-insulated terminals, whether you’re working with butt connectors, wire ferrules, or open barrel connectors.
- Prepare the wire: Strip the insulation off the wire to the recommended length without damaging the conductor.
- Insert the terminal: Place the terminal securely into the crimping die matched to your wire size (AWG or mm²).
- Position the wire: Slide the stripped wire end fully into the terminal barrel.
- Crimp with the JiaPaiMi tool: Squeeze the ratcheting crimping pliers firmly. The ratcheting mechanism ensures a full-cycle crimp and won’t release until the crimp is complete.
- Release and inspect: Release the handle and check for a tight, uniform crimp with no wire movement or damage.
Adjusting Compression Force
The JiaPaiMi wire terminal crimper includes an adjustable crimp force feature, allowing customization depending on wire gauge and terminal type:
- Locate the adjustment knob or screw near the ratcheting mechanism.
- Turn clockwise to increase compression force, ideal for heavier-duty wires or closed-barrel terminals.
- Turn counterclockwise to decrease force for delicate terminals or smaller gauge wires.
- Test crimp samples on scrap wire to find the optimal setting, ensuring consistent crimp quality with proper pull-out strength.
For more detailed guidance on proper wire crimping techniques, you can check out this comprehensive step-by-step guide on how to use wire crimpers, which covers all the key points needed to master your JiaPaiMi ratchet crimper.
Mastering these basics with your JiaPaiMi crimp tool guarantees strong, reliable electrical connections for automotive, marine, industrial, and DIY projects alike.
Applications & Use Cases
The JiaPaiMi ratcheting crimping tool is a versatile electrical crimping tool essential for a broad range of tasks. Its precision and robust design make it perfect for multiple industries and DIY projects alike.
Automotive Electrical
In automotive repairs and custom wiring, this tool handles insulated and non-insulated terminals with ease. Whether you’re working on wire harnesses or battery connections, the ratcheting crimping tool ensures consistent crimps that provide strong pull-out strength, crucial for vehicle safety and reliability.
Marine & Outdoor
Marine and outdoor environments demand corrosion-resistant, reliable connections for wiring exposed to moisture and vibration. The JiaPaiMi crimper works effectively on wire ferrules and open barrel crimp terminals, maintaining waterproof and durable seals in challenging conditions.
Industrial & Home DIY
In industrial settings, where heavy-duty wire crimps and quick-release features speed up repetitive tasks, this tool shines. Its adjustable crimp force accommodates various AWG wire gauges, from thin to heavy-duty cables. It’s also perfect for home DIY projects, including electronic repairs, lighting installations, and general electrical maintenance.
The full-cycle ratchet mechanism guarantees precise and uniform crimps every time, making it a go-to choice for professionals and weekend warriors alike. For a deeper dive into specific crimping tool types and their uses, check the detailed crimping pliers complete guide.
Frequently Asked Questions (FAQ)
Q: What makes a ratcheting crimping tool better than regular crimping pliers?
A: The ratcheting mechanism ensures a full-cycle crimp, providing consistent pull-out strength and reliable connections every time. It also prevents incomplete crimps, which are common with non-ratcheting tools.
Q: Can the JiaPaiMi ratcheting crimping tool handle both insulated and non-insulated terminals?
A: Yes, it’s designed for use with insulated terminals, non-insulated terminals, and open-barrel connectors, making it versatile for various electrical crimping tasks.
Q: What wire gauges (AWG/mm²) does this wire terminal crimper support?
A: The tool covers a wide crimping range suitable for wires from 0.25 to 6 mm² (approximately 24 to 10 AWG), accommodating most common electrical wiring needs.
Q: Are the dies interchangeable?
A: Absolutely. The JiaPaiMi crimper features interchangeable dies, allowing you to switch profiles for different terminal types, including butt connectors and wire ferrules, enhancing its flexibility.
Q: How do I adjust the crimping force on this electrical crimping tool?
A: There’s an adjustable compression force setting that lets you fine-tune the crimp pressure based on wire size and terminal type, ensuring optimal crimps without damaging components.
Q: Is there a quick-release feature?
A: Yes, the tool comes with a quick release mechanism that safely stops the ratchet if you need to abort a crimp mid-cycle, adding convenience and safety.
Q: Can this tool be used for heavy-duty wires?
A: While it’s suitable for most standard applications, including automotive and marine wiring, for very heavy-duty wire cutting or crimping, you might want to consider specialized heavy-duty wire crimpers. For instance, see the HS-325A ratchet cable cutter.
Q: Where can I find more info about different crimping tools and techniques?
A: For a practical guide on ferrule crimping and tips on choosing the right tool, check out our detailed ferrule crimping tools guide.
If you have more questions or want to explore specific uses for the JiaPaiMi ratcheting crimping tool, feel free to reach out. This tool is built to give professionals and DIYers alike a reliable, effortless crimp every time.
