Crimping is a widely used method for joining electrical wires to connectors or splicing wires without soldering. How to crimp wires is a commonly used method, It’s a simple technique that ensures a solid connection, whether you’re linking two wires or attaching a wire to a connector.

The strength of the connection depends on how well the crimping is done. With the proper tools and some basic knowledge, you can easily make secure electrical connections.

How to Crimp Wires Together

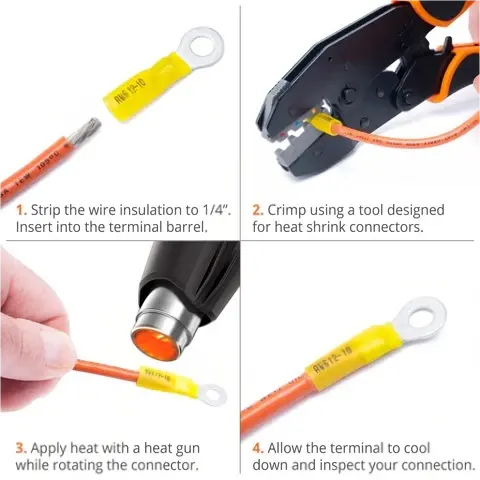

How to Crimp Wires? Crimping wires is widely used to join two or more wires by attaching connectors to their ends. Follow these steps for a strong and reliable wire-to-wire connection:

• Prepare the Wires: Remove the insulation from the wire ends to expose the conductor. Check the connector’s instructions for the correct stripping length.
• Choose the Right Connector: Select a crimp connector that fits your wire’s size and type. Connectors vary, so pick one that matches the wire’s cross-section.
• Insert the Wires: Fully insert the stripped wire ends into the connector.
• Crimp the Connector: Use a crimping tool recommended by the connector’s manufacturer to firmly compress the connector around the wires.
• Check the Crimp: Examine the connection for exposed wires or loose parts. A good crimp should be secure electrically and physically. If needed, do a pull test to confirm.

How To Use Wire Crimping Tools

Different materials need different crimping techniques, but here we focus on coaxial wire, which has special insulation to protect signals from interference. To keep the cable intact, follow these step-by-step instructions.

Wire Crimping Process:

• Use the right crimp terminal that fits your wire size, type, and application.
• Strip the insulation carefully to expose the wire without damaging the conductor or tearing the insulation.
• Insert the bare wire fully into the crimp terminal barrel.
• Place the terminal with the wire into the crimping tool, ensuring it is properly positioned in the crimping die.
• Squeeze the tool handles to compress the terminal barrel tightly around the wire.
• Release the tool and check the crimp for any damage like deformation or insulation tears.
• Repeat for other wires if needed.
• If applicable, use heat shrink connectors or other recommended methods to seal the connection.
• Always test the crimped wire before installation. Manual crimping tools without ratchets may produce uneven crimps, so be cautious.

Applications of Wire Crimping Tools:

• Electrical Work: Used to attach ring, spade, and butt connectors securely to wires.
• Automotive: Common for connecting battery cables, spark plug wires, and vehicle electrical parts.
• Networking and Telecom: Crimp connectors on Ethernet and phone cables.
• Plumbing and HVAC: Crimp connectors onto pipes and tubing in air conditioning and refrigeration systems.
• Jewelry Making: Secure beads, clasps, and other components on jewelry wire.

Wire crimping tools are essential whenever strong, reliable connections between wires and terminals or components are needed.

Wire Crimping Safety Considerations

Crimping wires is common across many fields, but safety is just as important as making a good connection. Handling electrical wires requires care to avoid accidents or damage.

Key safety tips when crimping wires include:

• Disconnect Power: Always turn off the power source by switching off the circuit breaker or unplugging devices before starting work. This prevents electric shocks.
• Use Protective Gear: Wear insulated gloves and safety goggles to protect against electrical hazards and any flying debris during crimping.
• Check Wires for Damage: Inspect wires for cuts, frays, or exposed conductors before crimping. Replace any damaged wires instead of using them.
• Match Wire and Connector Sizes: Use connectors that fit the wire size exactly. Incorrect sizing can cause weak connections and safety risks.
• Secure Wire Positioning: Make sure wires are fully and firmly inserted into connectors. Loose connections can cause overheating and fires.
• Maintain Crimping Tools: Keep your crimping tool clean and in good condition, checking it regularly to avoid malfunctions.
• Understand Grounding Needs: Some setups require grounding wires. Follow grounding rules carefully for safety.
• Work in Dry Conditions: Avoid crimping in wet or damp places, as moisture can cause shorts and other hazards.
• Double-Check Connections: After crimping, inspect connections to confirm they are tight and no wires are exposed.

Types of Crimping Tools

Using good-quality crimping tools is important for anyone working with wires regularly. The right tool helps make connections easier, faster, and more reliable. Here are common types of crimping tools:

• Ratcheting Crimpers: These provide precise, consistent crimps and come in different sizes to fit various wire and connector types.
• Hydraulic Crimpers: Designed for heavy-duty jobs and larger wires, hydraulic tools deliver strong pressure and reduce hand fatigue in industrial work.
• Battery-Powered Crimpers: Ideal for professionals needing quick and mobile solutions, these cordless tools work well for field tasks.
• Manual Crimping Tools: These hand-held pliers are best for small jobs or occasional use. They are generally affordable and simple to operate.

Description: Experience professional-grade crimping with the 9-inch HS-125 ratchet tool. Ideal for wires from 0.25 to 6mm², it ensures strong, consistent connections every time. Don’t settle for less.

conclusion

understanding how to crimp wires is essential for creating secure and reliable electrical connections.

Throughout this article, we emphasized the importance of using the right crimping tools and techniques to ensure strong and consistent crimps.

Mastering how to crimp wires properly not only improves connection quality but also enhances safety and efficiency in various electrical applications.

By focusing on how to crimp wires with precision, anyone can achieve professional results and dependable wiring every time.
